Material Handling
Portable Hydraulic Scissor Lifts
Enhances the portability of Mobile RBT units.
Can handle heavy loads easily.
View Specifications |
Six Fully Hydraulic Models:
Load rated from 300 Lbs. to 1,500 Lbs. Three height ranges to choose from.
Foot Pump or Battery Operation. Provide quick and effortless lifting and lowering.
Use with our Mobile Retractable Ball Transfers. (See below).
Illustration Note: Optional MRBT shown grayed out. Pricing is for the lift only, MRBT sold separately.
Specifications
Foot Pump Operated Hydraulic Scissor Lifts | |||||
Stock # | Capacity | Platform Size | Height: Low, Max | Strokes | Wt |
PSL-1 | 300 | 20" W x 32" L | 10" Low, 33" Max | 12 | 150 |
PSL-2 | 600 | 20" W x 32" L | 10" Low, 33" Max | 25 | 160 |
PSL-3 | 1000 | 20" W x 36" L | 9.25" Low, 33" Max | 35 | 335 |
PSL-4 | 1500 | 20" W x 36" L | 9.25" Low, 33" Max | 55 | 340 |
PSL-5 | 1000 | 20" W x 48" L | 9.25" Low, 45" Max | 46 | 390 |
PSL-6 | 1500 | 20" W x 48" L | 9.25" Low, 45" Max | 69 | 395 |
Battery Operated Hydraulic Scissor Lifts | |||||
Stock # | Capacity | Platform Size | Height: Low, Max | Time | Wt |
BPL-1 | 1000 | 24" W x 36" L | 9.25" Low, 33" Max | 8 sec | 420 |
BPL-2 | 1000 | 24" W x 48" L | 9.25" Low, 45" Max | 14 sec | 425 |
NOTE: For Foot Pump Models, the Strokes figure is the number of pump strokes to go from collapsed (minimum) height to the maximum height. For Battery Operated Pump Models, the Time figure is the number of seconds required for the lift to travel from collapsed to maximum height. |

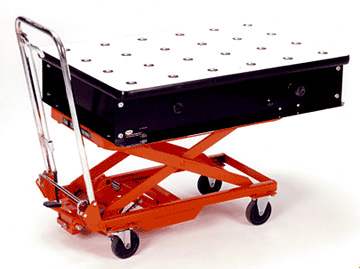

Now Put It All Together
ERGONOMIC MOBILE RBT CARTS
Putting Two Great Ideas Together.
Consist of Two Components: A Portable Hydraulic Scissor Lift & A Mobile RBT Platform.
Lower back injuries account for more lost work days than any industrial injury.
If employees followed OSHA regulations and did not lift heavy items, most of these injuries would be eliminated. Build a few of these carts to eliminate all lifting in your facility. Let the machine do the lifting, not your lower back.
Why not build your products on these mobile carts vs. stationary benches? Offload conveyor, benches, shelving, etc. Balls retract to stabilize your product while cart is in motion.
